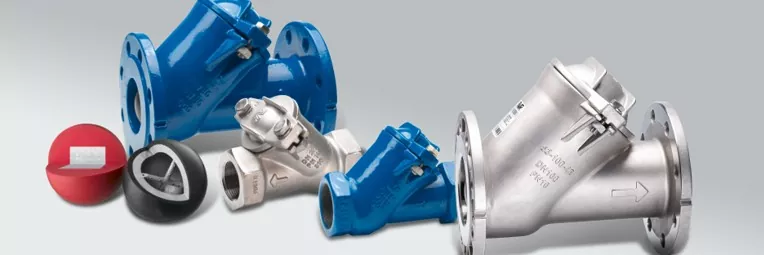

The Ductile Iron Flanged Ball Check Valve is designed to provide exceptional sealing performance across both high and low-pressure systems. It is ideal for general-purpose industrial applications as well as HVAC systems, including water distribution, heating, air conditioning, and compressed air systems. This cost-effective and reliable valve features a Ductile Iron body and bonnet with an epoxy coating, an NBR seat, and an NBR-coated aluminum ball (for sizes 8" to 16", the ball is made from NBR-coated cast iron).
This valve can be installed in either a vertical (upward-only) or horizontal position, making it versatile for a variety of setups.
● Sizes available: From 1 1/2" to 16".
● Operating temperature range: -10°C to 70°C.
● Pressure rating: PN16/10 for sizes 1 1/2" to 8", and PN10 for sizes 10" to 16".
● Designed for easy maintenance.
● Features a low cracking pressure.
● For comprehensive information, please download the attached datasheet.
|
Dimensions |
|||||||
|
Size |
A |
B |
C |
L(ftof) |
Kv |
Weight (kg) |
Cracking |
|
11/2" |
90 |
150 |
120 |
180 |
60 |
8.2 |
16 |
|
2" |
115 |
165 |
140 |
200 |
81 |
9.4 |
21 |
|
21/2" |
135 |
185 |
155 |
240 |
130 |
12.5 |
22.3 |
|
3" |
160 |
200 |
185 |
260 |
255 |
15 |
67 |
|
4" |
190 |
226 |
220 |
300 |
400 |
20 |
87 |
|
5" |
222 |
253 |
255 |
350 |
645 |
30 |
92 |
|
6" |
268 |
285 |
290 |
400 |
970 |
38 |
123 |
|
8" |
335 |
342 |
370 |
500 |
2000 |
70 |
146 |
|
10" |
420 |
403 |
380 |
600 |
3050 |
125 |
118 |
|
12" |
495 |
445 |
445 |
700 |
4150 |
180 |
155 |
|
14" |
580 |
505 |
520 |
800 |
5100 |
290 |
168 |
|
16" |
730 |
565 |
712 |
900 |
6600 |
420 |
186 |
|
20" |
900 |
670 |
772 |
1100 |
9700 |
580 |
249 |
OurDuctile Iron Flanged Ball Check Valve comply with international standards, ensuring quality and safety. They are certified for various applications and have undergone rigorous testing to meet industry requirements.
Our products are distributed globally, serving clients in diverse industries across multiple countries. We are committed to providing high-quality valves that meet international standards and satisfy the needs of our worldwide customers.
