Wivo gate valves are engineered with built-in safety in every aspect. The wedge is fully vulcanized with Wivo's proprietary, drinking water-approved EPDM rubber compound. This ensures exceptional durability, as the rubber can return to its original shape, thanks to the double bonding vulcanization process and robust wedge design. The triple safety stem sealing system, along with the high-strength stem and comprehensive corrosion protection, guarantees unmatched reliability and performance.
Wivo gate valves are engineered with built-in safety in every aspect. The wedge is fully vulcanized with Wivo's proprietary, drinking water-approved EPDM rubber compound. This ensures exceptional durability, as the rubber can return to its original shape, thanks to the double bonding vulcanization process and robust wedge design. The triple safety stem sealing system, along with the high-strength stem and comprehensive corrosion protection, guarantees unmatched reliability and performance.
● Wedge is fully vulcanized with high-quality EPDM rubber, complemented by wedge shoes to ensure smooth operation.
● Wedge and body guide rails provide steady, reliable performance during use.
● Stainless steel stem equipped with a wedge stop and rolled threads, offering superior strength.
● Full-circle thrust collar stabilizes the stem, minimizing free-running torque.
● Triple-layer safety stem sealing system, featuring an NBR wiper ring, a polyamide bearing with four NBR O-rings, and an NBR rubber manchette for enhanced sealing integrity.
● EPDM bonnet gasket securely fixed in a recessed area for better sealing.
● Countersunk stainless steel bonnet bolts, sealed and encircled by the bonnet gasket for optimal protection.
● Full bore design ensures unrestricted flow.
● Low operating torque for ease of use.
● Fusion-bonded epoxy coating meeting DIN 3476 Part 1 and EN 14901 standards, GSK approved for durability and corrosion resistance.
● Visual or remote valve position read-out through a stem-mounted position indicator.
Would you like any additional details on these features or specifications?

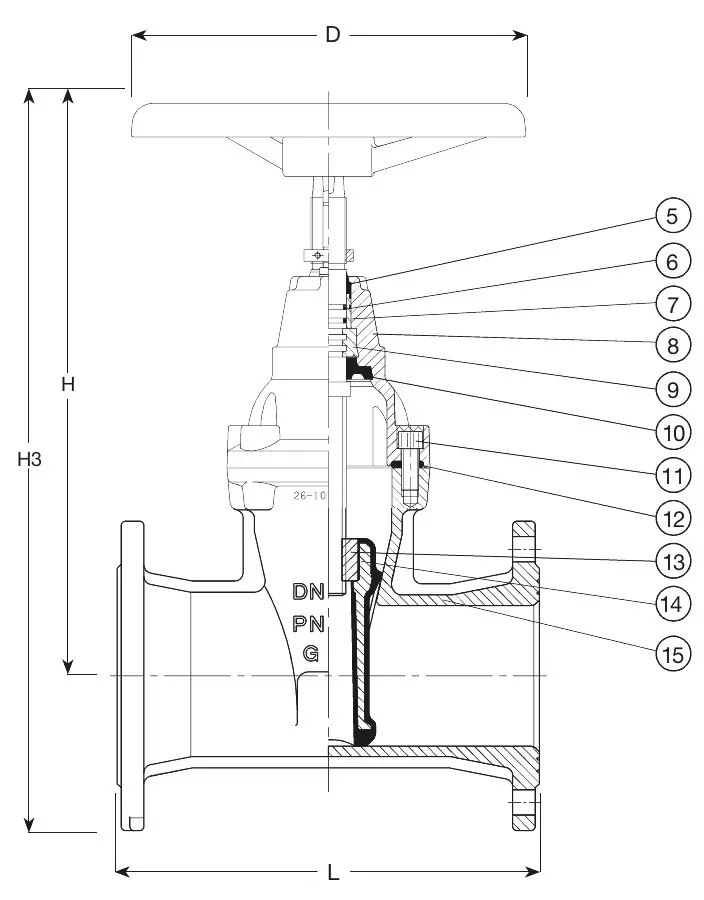

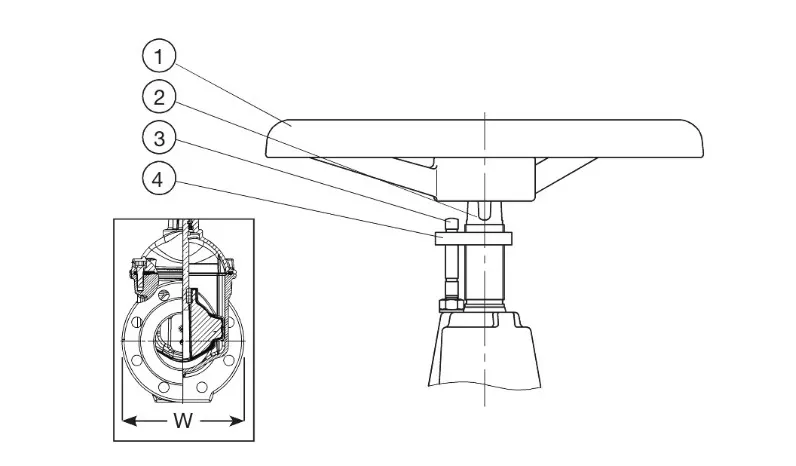

1. Handwheel: Made from cast iron GJL-250 (GG-25) for strength and durability.
2. Stem: Crafted from stainless steel 1.4104 (430F) for excellent corrosion resistance.
3. Pin: Constructed from stainless steel for enhanced durability and reliability.
4. Indicator Nut: Made from dezincification-resistant brass to ensure longevity in demanding environments.
5. Wiper Ring: Manufactured from NBR rubber for effective sealing and protection.
6. O-Ring: NBR rubber O-rings provide a secure and tight seal.
7. Bearing: Polyamide bearing for smooth and reliable operation.
8. Bonnet: Ductile iron GJS-500-7 (GGG-50) offers superior strength and toughness.
9. Thrust Collar: Made from brass, DZR CW602N, providing solid performance and corrosion resistance.
10. Manchette: EPDM rubber manchette for long-lasting sealing and protection.
11. Bonnet Bolt: Stainless steel A2 bolts, sealed with hot melt for added protection against corrosion.
12. Bonnet Gasket: EPDM rubber gasket ensures a tight and reliable seal.
13. Wedge Nut: Brass, DZR CW626N, offering high resistance to corrosion and wear.
14. Wedge: Ductile iron, fully encapsulated in EPDM rubber for enhanced durability and sealing.
15. Body: Ductile iron GJS-500-7 (GGG-50), providing superior strength and resistance to impact.
These materials are selected to ensure that the valve performs reliably even in demanding conditions. Would you need more information on the material properties or applications?
Certifications and Global Reach
● Certifications:
◎ ISO 9001: Quality Management System
◎ API 600: American Petroleum Institute standard for Gate Valves
◎ CE Marking for EU compliance
◎ ANSI/ASME compliance for pressure and temperature ratings
● Global Reach: Trusted worldwide in industries across North America, Europe, Asia, and the Middle East, with a reliable distribution network for rapid delivery.
