Shear Gate Valves

Shear Gate Valves are specifically engineered for applications involving low seating pressure, such as filling and emptying tanks, sludge discharge lines, and other similar systems. These valves are particularly effective in tank environments where sludge or other debris may adhere to the valve seat. Upon closing, the shear gate valve creates a tight shearing action that helps to clear any residual sludge from the valve seat, ensuring a secure seal and preventing blockages. Their design is ideal for maintaining optimal flow and preventing issues associated with stuck or clogged valves.

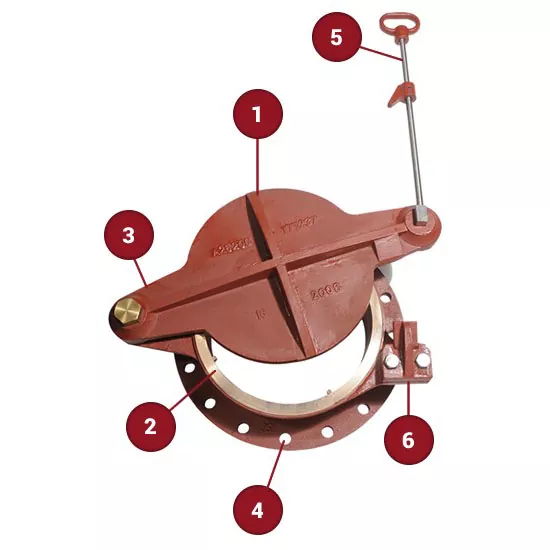

Cast Iron Construction

Unlike fabricated components, our cast iron parts offer superior durability and a lower risk of failure over time, ensuring long-term reliability.

Machined Bronze Seat

The machined bronze seat provides a robust surface for effective shearing, ensuring optimal performance and durability.

Dual Epoxy Coating

Our flap valves are coated with a two-part epoxy that offers exceptional protection against corrosion, extending the lifespan of the valve.

Offset Body Design

To facilitate easier operation of the lift rod, we have offset the body flange’s bolt circle by 30 degrees from the centerline.

Standard 2-Foot Lift Rod

The standard lift rod is 2 feet in length, made of steel with a cast iron handle and hook catch. Stainless steel rods in custom lengths are also available.

Single Wedge Mechanism

Our innovative single wedge design ensures complete closure. Unlike double wedge gates, which can cause the disc to become stuck or misaligned, the single wedge design allows smooth and secure operation.


Operation

This valve is operated by manually lifting the pull rod connected to the disc. The valve can be held in different open positions using adjustable catch hooks on the pull rod.


Maintenance

The body and disc are coated at the factory to protect against corrosion. Regular visual inspections of the coating are recommended, with field cleaning and repainting done as needed. To adjust the seating, tighten or loosen the hinge bolt nut to modify the position of the hinge bolt and wedge. Use a .004 feeler gauge to adjust the gate disc and ensure the proper seat gap around the full seating circumference.


Installation

The valve should be mounted using a standard 125-lb flange. For proper operation and closure, the valve is installed with a 30-degree offset from the vertical centerline.


Parts

Parts are available upon request. Contact us for more details.

Certifications and Global Reach

Single Ball Check Valve

Certifications:

◎ ISO 9001: Quality Management System

◎ API 600: American Petroleum Institute standard for Gate Valves

◎ CE Marking for EU compliance

◎ ANSI/ASME compliance for pressure and temperature ratings

● Global Reach: Trusted worldwide in industries across North America, Europe, Asia, and the Middle East, with a reliable distribution network for rapid delivery.
