Full Port Knife Gate Valve
  • Full Port Knife Gate ValveFull Port Knife Gate Valve

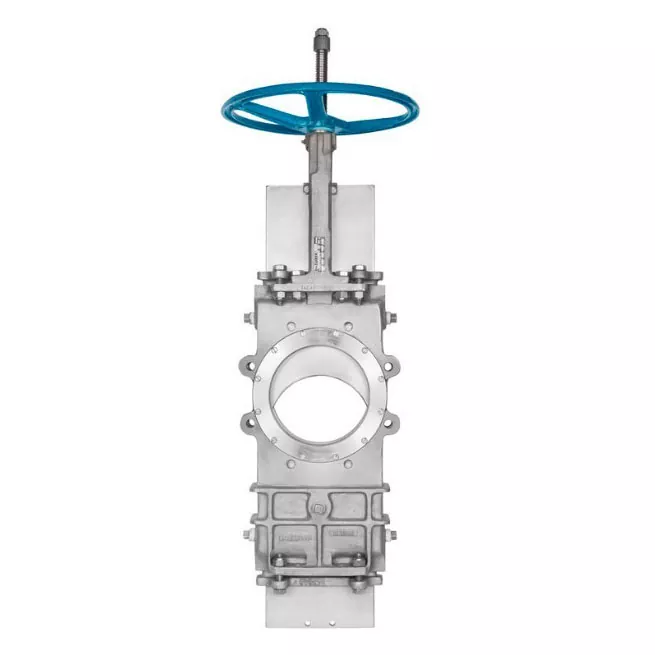

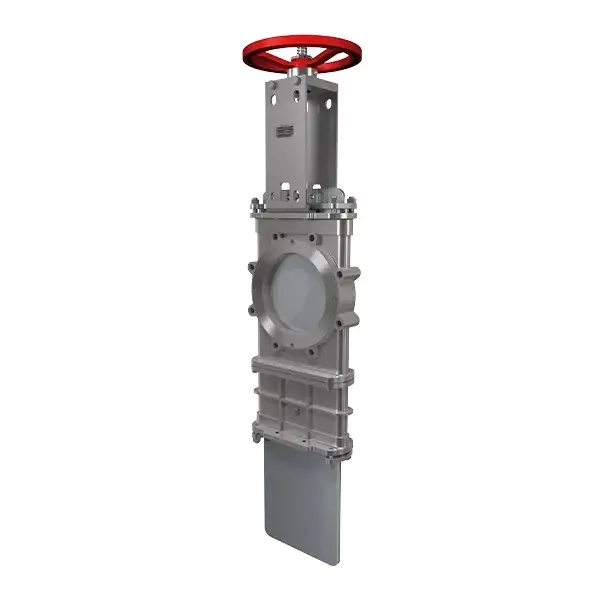

Full Port Knife Gate Valve

The WIVO-series Full Port Knife Gate Valve is a bi-directional wafer-style valve primarily designed for handling highly concentrated flow media. Featuring a through-going O-port plate, this valve ensures reliable and secure shut-off performance, even in demanding applications, without the risk of clogging. Its double-seat construction enables it to efficiently manage flow in both directions, making it a versatile choice for various industrial systems.

The WIVO-series Full Port Knife Gate Valve is a robust and reliable bi-directional valve, ideal for use in industries such as pulp & paper, water treatment, and power generation. Available in sizes ranging from DN50 to DN600, it supports temperatures between -29°C and +800°C and pressures up to 10 Bar. Constructed from carbon steel, stainless steel, or special alloys, it features a hard chrome-coated, polished gate and replaceable seats for excellent sealing performance and durability. Designed to meet MSS SP-81 and international flange standards, it offers efficient and leak-free operation.

Product Features:

Body:

Full Port Design: The full port design reduces pressure drop and enhances flow capacity, ensuring efficient operation.

Leak-proof Packing: Packing on both the top and bottom of the valve prevents any leakage to the surrounding area, improving reliability.

Gate:

O-port Gate Design: The gate features an O-port cut that allows media to flow through while closing, preventing clogging in the valve body. The gate returns this section when the valve opens.

Increased Gate Thickness: The gate can be thickened to accommodate higher working pressures, offering added durability.

Polished Gate Surface: Both sides of the gate are finely polished to ensure a tight seal and minimize jamming.

Hard Chrome Coated: The gate is coated with hard chrome for superior abrasion resistance, extending the valve's lifespan.

Seat:

Replaceable Side-entry Seat: The seat is easily replaceable, reducing maintenance costs.

Seat Retainer: The seat retainer covers the seat's side, protecting it from direct flow flushing and extending its service life.

Adjustable Preloaded Seat: The preloaded seat is adjustable to provide different sealing classes and compensate for normal wear.

Dual-side Seats: With seats on both sides, this valve is fully capable of handling flow in both directions with complete efficiency.

Other:

Double Thrust Bearing: The inclusion of double thrust bearings minimizes operating torque, improving ease of operation and reducing wear.

Product Parameter (Specification)

Specification

Details

Size Range

DN50~600mm, NPS 2”–24” (Larger sizes available upon request)

Max Working Pressure

DN50DN250: 10 Bar (NPS2NPS10: 150 Psi)

DN300DN450: 7 Bar (NPS12NPS18: 90 Psi)

DN500DN600: 4 Bar (NPS20NPS24: 60 Psi)

Temperature Range

-29°C to +800°C

Seal Tightness

According to MSS SP-81

Body Material

Carbon Steel, Stainless Steel, Special Alloy

Gate Material

Stainless Steel, Special Alloy

Seat Material

Stainless Steel + STL



EPDM (120°C) / Viton (200°C) / PTFE (200°C) / NBR (90°C)

Face to Face

MSS SP-81

Flange Standard

GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN1092-1

Application

Pulp & Paper, Water Treatment, Beverage & Food, Fine Chemical, Power Plant, Steel Industry, etc.

Certifications and Global Reach

Single Ball Check Valve

Our KNIFE GATE VALVES comply with international standards, ensuring quality and safety. They are certified for various applications and have undergone rigorous testing to meet industry requirements.

Our products are distributed globally, serving clients in diverse industries across multiple countries. We are committed to providing high-quality valves that meet international standards and satisfy the needs of our worldwide customers.
