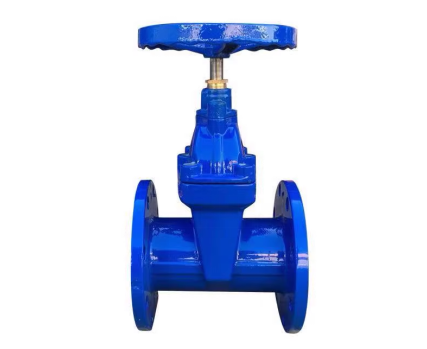

Cast Iron Gate Valve - DN50
  • Cast Iron Gate Valve - DN50Cast Iron Gate Valve - DN50

Cast Iron Gate Valve - DN50

The WIVO VALVES Cast Iron Gate Valve (DN50) is a high-quality, durable valve designed for reliable flow control in water, oil, gas, and other general-purpose industrial applications. Built with robust cast iron construction and a precision-engineered wedge gate mechanism, this valve ensures tight shut-off, low-pressure drop, and long service life.

Key Features

· Material: High-grade cast iron body, bonnet, and disc for superior strength and corrosion resistance.

· Size: DN50 (2") – complies with international standards.

· Pressure Rating: PN10/PN16 (or as specified), suitable for medium-pressure systems.

· Seat & Seal: Resilient seat or metal-to-metal sealing for leak-proof performance.

· Operation: Handwheel-operated for manual control; also available with gearbox or actuator (upon request).

· Connection Type: Flanged ends (EN 1092-2, ANSI B16.5, or as per requirement).

· Standards: ISO 5996, EN 1171, or customer-specific certifications.

· Applications: Water supply, wastewater, HVAC, fire protection, and industrial pipelines.

Cast Iron Gate Valve - DN50

Advantages

✔ Durable & Reliable: Robust cast iron construction ensures longevity.

✔ Smooth Operation: Non-rising stem design saves space and reduces wear.

✔ Zero Leakage: Tight sealing prevents fluid loss.

✔ Versatile: Compatible with a wide range of media and temperatures.

Optional Customizations

· Epoxy Coating (Internally/Externally) for enhanced corrosion resistance.

· Stem Extensions for underground or hard-to-reach installations.

· Locking Device for safety and tamper-proof operation.

Technical Specifications

· Max. Temperature: Up to 200°C (depending on seat material).

· Face-to-Face: EN 558 Series 20 (or as per standard).

· Test Standards: Shell test (EN 12266-1), seat leakage test (ISO 5208)

· Certifications and Global Reach


· Our cast iron gate Valve comply with international standards, ensuring quality and safety. They are certified for various applications and have undergone rigorous testing to meet industry requirements.

· Our products are distributed globally, serving clients in diverse industries across multiple countries. We are committed to providing high-quality valves that meet international standards and satisfy the needs of our worldwide customers.
