Bidirectional Knife Gate Valve
  • Bidirectional Knife Gate ValveBidirectional Knife Gate Valve

Bidirectional Knife Gate Valve

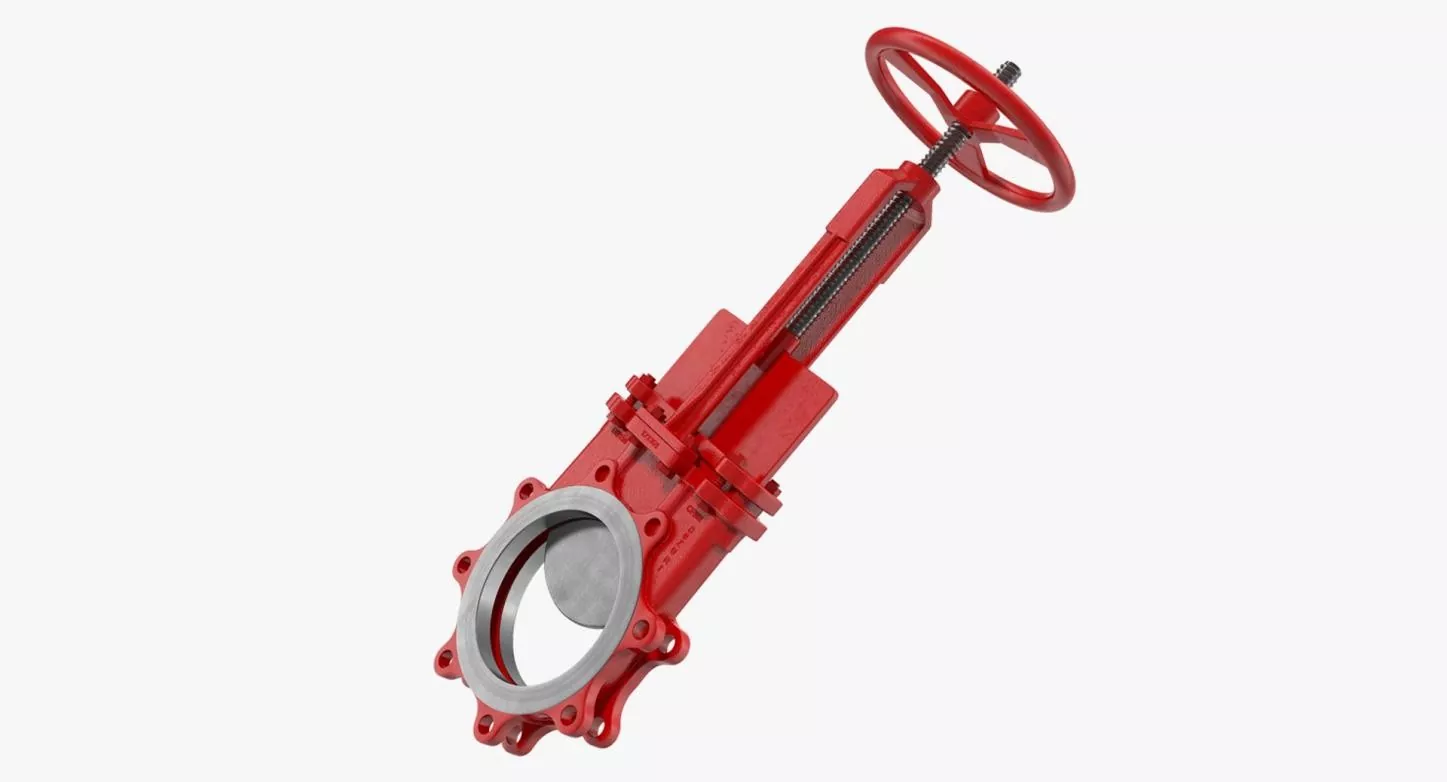

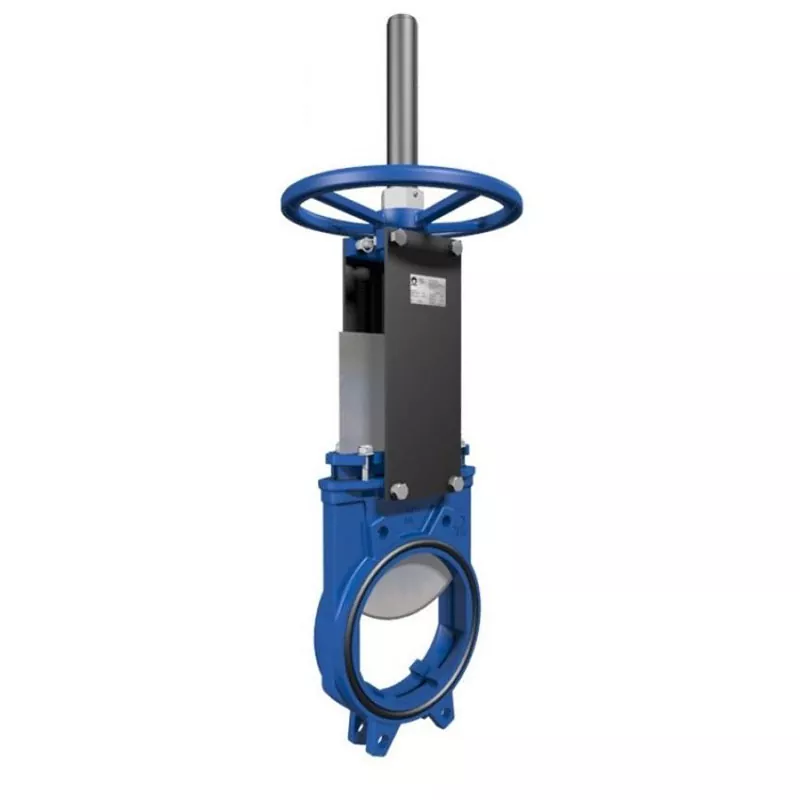

The bidirectional knife gate valve from WIVO is engineered to excel in challenging slurry environments. Its innovative push-through gate design and dual elastomer seats ensure self-cleaning functionality while effectively minimizing media accumulation.
Body Style

Two-Piece Bolted – Wafer

Size Range

NPS 2 to 12 / DN 50 to 300

Certifications

ATEX, CRN, PED, PE(S)R, TR CU, UA TR

Stem Materials

304 Stainless Steel

Actuator Options

Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric

Maximum Allowable Operating Pressure

90 psi (6.2 bar)

Wiper Materials

EPDM

Design Standard

Manufacturer Standard

Testing Standard

Manufacturer Standard

Applications

Sugar, Pulp & Paper

Body Materials

Ductile Iron, CF8, CF8M, CF3M, WCB

Gate Materials

304, 316, 317 Stainless Steel, SAF 2507, SAF 2205, 17-4PH, Hastelloy® C, Monel®

Face to Face:

MSS SP81

Seat Material Temperature Range

Natural Rubber: 165°F / 74°C
EPDM: 248°F / 120°C

Features & Benefits

The bidirectional knife gate valve from WIVO is engineered to excel in challenging slurry environments. Its innovative push-through gate design and dual elastomer seats ensure self-cleaning functionality while effectively minimizing media accumulation.


Features


Featuring a robust ductile iron body in a space-saving wafer configuration, this valve provides a full bore when fully opened, ensuring unobstructed flow with zero resistance to the line media.

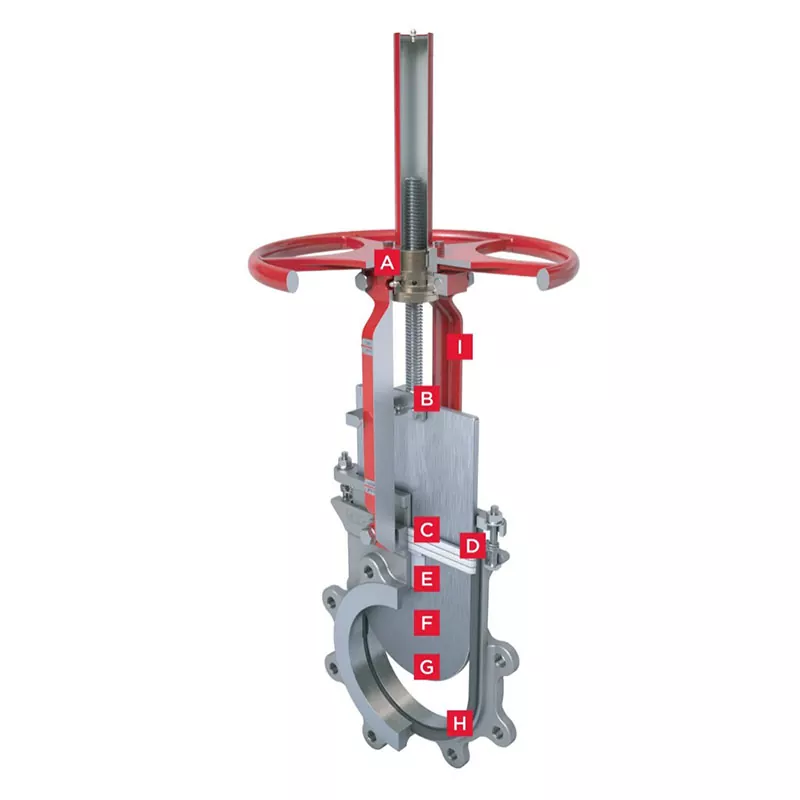

A
Topworks
The topworks are designed for seamless and rapid conversion between manual and pneumatic actuation. For manual operation, the valves are equipped with a lubricant injection port, ensuring smooth and consistent performance while minimizing maintenance requirements. sticker.
B
Clevis
The clevis design combined with horizontal bolting enhances gate stability, ensuring precise alignment during operation.
C
Packing (standard)
The standard multi-layer square packing delivers superior gland sealing performance.
D
Packing (optional)
Energized quad seal packing is available as an option, providing enhanced gland sealing capabilities.
E
Seat
Comes with a standard integral metal seat and offers optional replaceable resilient seats for zero leakage performance.
F
Gate
The gate design maintains precise alignment throughout the entire stroke.
G
Body
The unique body design eliminates dead pockets, allowing for efficient self-draining of the valve.

Contact Us

Whatsapp:+86-15963008926

Email:peter@wovalves.com

To learn more about WIVO VALVES' Bidirectional Knife Gate Valve or for product inquiries and purchases, please feel free to contact us. We look forward to providing you with the best product solutions and an excellent service experience!
